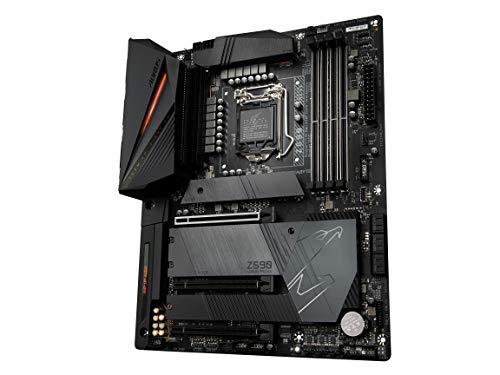

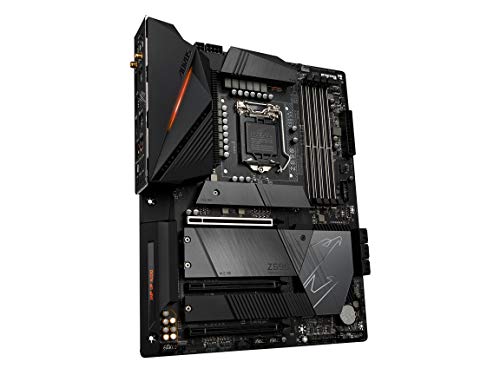

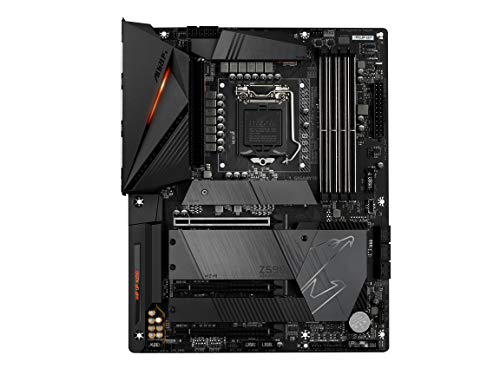

Gigabyte Z590 AORUS PRO AX
High-end Z590 ATX board for Intel 10th/11th Gen with overclocking, Wi‑Fi 6, 2.5GbE, PCIe 4.0 (11th Gen), multi‑M.2, and USB‑C 20Gbps; launched Feb 2021.
As an Amazon Associate, GixCore earns from qualifying purchases.
Product overview
Announced January 11, 2021 and sold from February 19, 2021 (Japan), the Z590 AORUS PRO AX is a Gigabyte Intel Z590 LGA1200 board for 10th- and 11th‑Gen Core (Rocket Lake/Comet Lake). ([gigabyte.com](https://www.gigabyte.com/ie/Press/News/1874?utm_source=openai))
As a high_end Z‑series ATX board, it exists to unlock overclocking and robust I/O for LGA1200 builds. It offers four‑slot DDR4 support (up to 128 GB), CPU‑dependent PCIe 4.0 on the primary x16 slot (with 11th Gen), multiple M.2 NVMe options, Intel 2.5GbE, Intel Wi‑Fi 6, rear USB‑C 20 Gbps, and a front‑panel USB‑C header—useful for storage‑heavy gaming or creator rigs that want clean upgrade paths. ([gigabyte.com](https://www.gigabyte.com/uk/Motherboard/Z590-AORUS-PRO-AX-rev-10/sp))
- overclocking
- expansion/multi-M.2
- high-speed memory
Product highlights
- Supports 11th and 10th Gen Intel Core Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Intel Optane Memory Ready
- Direct 12+1 Phases Digital VRM Solution with 90A Smart Power Stage
- Shielded Memory Routing to avoid Interference
Specifications
- Socket
- LGA1200
- WiFi
- Yes
- Integrated Graphics
- No
- Compatible Memory
- DDR4
- USB
- 3.2
- Max Memory Size
- 128 GB
- ECC Support
- No
- Chipset
- Z590
- Max RAM speed
- 5000 MHz
- Form factor
- ATX
- RAM slots
- 4
- M.2 slots
- 3
- PCIe x16
- 3
- Processor Generation
- 11, 10
- Pci E
- 4.0
- M 2
- PCI-E
- Sata Slots
- 6
- Sata Speed
- 6 Gb/s
- Pci E Slots
- 3
- Tdp
- 50 W
- Nvme
- Yes
- Cpu Brand
- Intel
Compatible CPUs
Intel Core i5-10600K
Pentium Gold G-6400
Intel Core i3-10100
Intel Core i3 (10th Gen) i3-10105
Intel Core i3-10320
Intel Core i5-10400
Intel Core i5-10400F
Intel Core i5-10600
Intel Core i5-11400
Intel Core i5-11500
Intel Core i5-11600
