ASUS ROG Maximus XIII Hero
ASUS ROG Maximus XIII Hero (Z590, LGA1200) ATX board for Intel 11th/10th Gen with DDR4‑5333, 4x M.2, Wi‑Fi 6E, dual 2.5GbE, and dual Thunderbolt 4.
As an Amazon Associate, GixCore earns from qualifying purchases.
Product overview
Released in April 2021 (Japan retail from April 2), the ASUS ROG Maximus XIII Hero is a ROG Maximus XIII-series Intel Z590 ATX motherboard for LGA1200, built for 11th‑gen “Rocket Lake” and compatible with 10th‑gen Core CPUs. As a high_end Z590 board, it exists to unlock CPU overclocking on LGA1200 while delivering premium I/O. It’s well-suited to expansion/multi‑M.2 builds (four M.2 slots with PCIe 4.0 on 11th‑gen), high‑speed memory setups (4×DDR4, up to 128 GB, 5333 OC), and feature‑rich connectivity in ATX cases—Wi‑Fi 6E, dual Intel 2.5 GbE, and plentiful USB including Thunderbolt 4. Unique: dual Thunderbolt 4 Type‑C on the rear I/O. Discontinued status not officially stated.
- overclocking
- expansion/multi-M.2
- high-speed memory
Product highlights
- Intel LGA 1200 socket: Designed to unleash the maximum performance of 11th Gen Intel Core processors
- AI Motherboard : AI overclocking, AI cooling, AI networking and AI noise cancelation

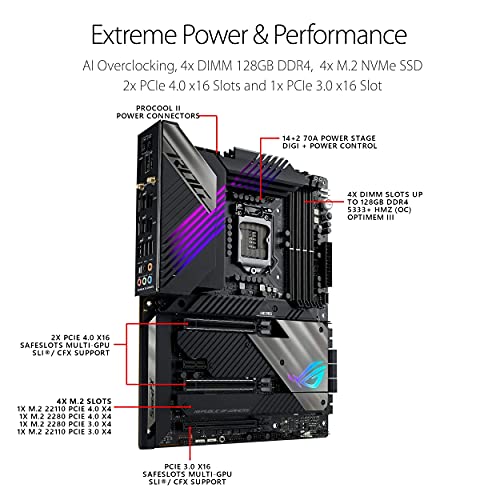

- Robust Power Solution: 14 plus 2 teamed power stages rated for 90 Amps, ProCool II power connectors, MicroFine alloy chokes and 10K Japanese-made black metallic capacitors
- Optimized Thermal Design: Enlarged VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, quad M.2 heatsinks with embedded backplates and ROG Water-Cooling Zone
- High-Performance Networking: Onboard WiFi 6E (802.11ax), dual Intel 2.5 Gb Ethernet and ASUS LANGaurd
Specifications
- Socket
- LGA 1200
- WiFi
- Yes
- Integrated Graphics
- Yes
- Compatible Memory
- DDR4
- USB
- 3.2
- Max Memory Size
- 128 GB
- ECC Support
- No
- Chipset
- Z590
- Max RAM speed
- 5333 MHz
- Form factor
- ATX
- RAM slots
- 4
- M.2 slots
- 4
- PCIe x16
- 3
- Processor Generation
- 11, 10
- Pci E
- 4.0
- M 2
- PCI-E
- Sata Slots
- 6
- Sata Speed
- 6 Gb/s
- Pci E Slots
- 3
- Tdp
- 70 W
- Nvme
- Yes
- Pci E X1
- 1
- Cpu Brand
- Intel
