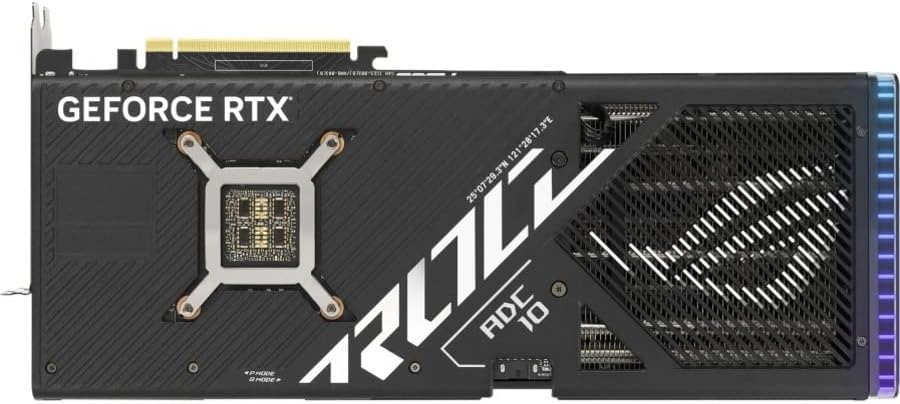

ASUS ROG Strix GeForce RTX 4080 OC
ASUS ROG Strix RTX 4080 OC: enthusiast Ada GPU for 4K gaming/creation; 16GB GDDR6X, 320W, 12VHPWR, 357.6 mm 3.5‑slot, 3×DP + 2×HDMI; discontinued 2024.
As an Amazon Associate, GixCore earns from qualifying purchases.
Product overview
Released on November 16, 2022, the ASUS ROG Strix GeForce RTX 4080 OC is an Ada Lovelace (RTX 40‑series) card. This Strix variant sits in the enthusiast tier, offering a factory‑overclocked take on the RTX 4080 for builders who want high‑end 4K capability in an oversized cooler. With 16GB GDDR6X and strong ray‑tracing plus DLSS 3, it’s ideal for 4K gaming and heavy content‑creation workflows. It’s a 320 W board that uses a single 16‑pin (12VHPWR) connector; ASUS recommends a 750 W PSU. The cooler is huge at 357.6 × 149.3 × 70.1 mm (3.5‑slot), and outputs include 3× DisplayPort 1.4a and 2× HDMI 2.1a. Notably, the dual‑HDMI layout is uncommon. The non‑SUPER RTX 4080 line was discontinued in 2024 after the 4080 SUPER launch.
- 4K gaming
- ray tracing
- content creation/rendering
Product highlights
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
- 4th Generation Tensor Cores: Up to 2X AI performance
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Axial-tech fans scaled up for 23% more airflow
- New patented vapor chamber with milled heatspreader for lower GPU temps
- 3.5-slot design: massive fin array optimized for airflow from the three Axial-tech fans
- Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation
- Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
Specifications
- GPU chip
- RTX 4080 OC
- VRAM
- 16 GB
- GPU clock
- 2205 MHZ
- Bus width
- 256-bit
- Interface
- PCI-E 16x
- Graphics Ram Type
- GDDR6X
- Memory Transfer Speed
- 716.8 GB/s
- VR
- Yes
- Tdp
- 320 W
