JONSBO D31 MESH
Jonsbo D31 MESH: compact mATX mini‑tower with up to 400 mm GPU clearance and dual 360 mm radiator support for budget airflow/radiator builds.
As an Amazon Associate, GixCore earns from qualifying purchases.
Product overview

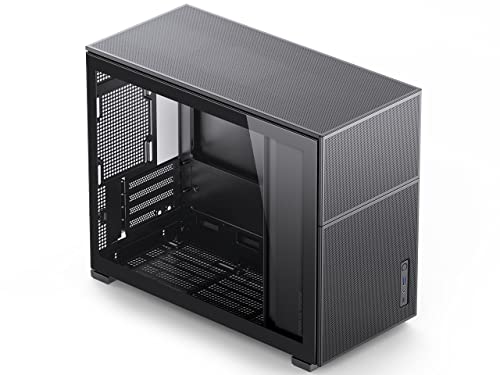

Introduced in spring 2023, the Jonsbo D31 MESH is a compact 31.3 L micro‑ATX member of Jonsbo’s D‑series. It remains an active model on Jonsbo’s site, not listed among EOL products. Budget‑tier: built to fit serious hardware in a small, inexpensive chassis. It supports mATX/ITX boards, GPUs 330–400 mm long (varies with PSU position), 168 mm air coolers, and 240/280/360 mm radiators up top plus 240/360 mm at the bottom, with mounts for up to eight 120 mm fans. PSU support spans ATX or SFX units (100–220 mm) with multi‑position mounting, and storage is 2×2.5 in + 1×3.5 in. Front I/O provides USB‑C (Gen2), USB‑A, and audio. Unique for its size: dual 360 mm radiator support in a micro‑ATX case.
- airflow builds
- water cooling/radiators
- budget builds
- high GPU clearance
Product highlights
- D31 "Pine cone" series-Mesh Screen PC Case This model D31 is a Micro ATX model. If you need a larger size, please purchase D41. The mesh panel is easier to ventilate and dissipate heat. Small size, big compatibility, easier to build your PC.More convenient

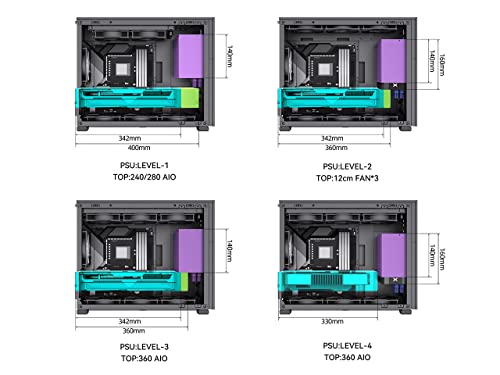

- Computer case size 205*363*452mm POWER SUPPLY: ATX / SFX: 100mm-220mm L max The 4-level height adjustment of the power supply position is added,Whether it is to set up a personal small workstation or a feverish E-sports PC, D31 can easily select the hardware.
- Computer Case Motherboard : MATX/MicroATX
- Air cooler:168mm high-order / Support AIO:360/280/240 (Top) 360/240 (Bottom)
- GPU:330-400mm PSU: ATX/SFX:100mm-220mm L max
Specifications
- Form factor
- Micro ATX
- Color
- Black
- Tempered glass
- No
- Dimentions
- 8.07 x 14.29 x 17.80 in
- Weight
- 13.01 lb
