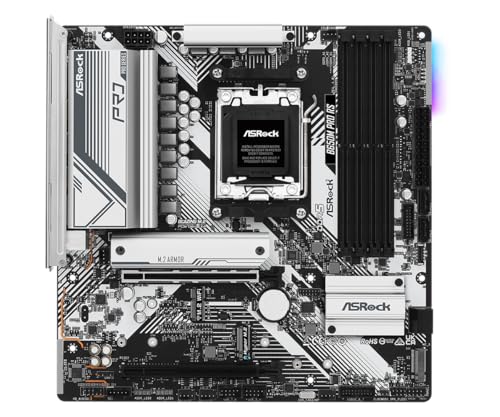

ASRock B650M Pro RS
- Brand
- ASRock
- Model
- B650M Pro RS
- ASIN
- B0C6HWFVNS
Asrock B650M Pro RS AMD Socket AM5 Ryzen 7000/8000/9000 Series DDR5 7200+ (OC) MHz 256GB M.2 Key E for WiFi SATA3 6.0 Gb/s Micro ATX Motherboard 2.5G LAN BIOS Flashback
As an Amazon Associate, GixCore earns from qualifying purchases.
SocketAM5
ChipsetB650
MemoryDDR5
Max RAM speed7200 MHz
Form factormATX
RAM slots4
M.2 slots3
PCIe x162
Overview
Asrock B650M Pro RS AMD Socket AM5 Ryzen 7000/8000/9000 Series DDR5 7200+ (OC) MHz 256GB M.2 Key E for WiFi SATA3 6.0 Gb/s Micro ATX Motherboard 2.5G LAN BIOS Flashback

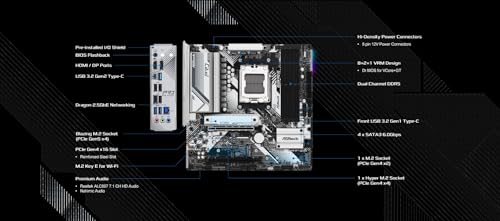

- Next-Gen AMD Platform: Supports AMD Socket AM5 Ryzen 9000, 8000, and 7000 Series Processors, providing a modern foundation for your build
- Stable Power Delivery: 8+2+1 power phase design with Dr.MOS ensures reliable performance for your CPU and system components
- High-Speed DDR5 Memory: 4 DDR5 DIMM slots support dual-channel configurations and overclocked speeds up to 7200+ (OC)
- PCIe 5.0 Storage Ready: Features one Blazing M.2 (PCIe Gen5x4) slot for next-generation NVMe SSDs with incredible transfer speeds
- Comprehensive Storage Options: Multiple M.2 slots (PCIe 5.0 and PCIe 4.0) plus four SATA3 ports for extensive storage expansion
- Advanced Connectivity: Includes USB 3.2 Gen2 Type-A and Type-C ports on rear I/O, plus front-panel USB 3.2 Gen1 Type-C support
- Premium Networking: Dragon 2.5G LAN delivers high-speed wired connectivity for gaming and streaming
- Enhanced Audio Experience: Realtek ALC897 7.1 CH HD Audio Codec with Nahimic Audio provides immersive sound quality
Specifications
- Socket
- AM5
- WiFi
- No
- Integrated Graphics
- Yes
- Compatible Memory
- DDR5
- USB
- 3.2
- Max Memory Size
- 256 GB
- ECC Support
- No
- Chipset
- B650
- Max RAM speed
- 7200 MHz
- Form factor
- mATX
- RAM slots
- 4
- M.2 slots
- 3
- PCIe x16
- 2
- Processor Generation
- 7000, 8000, 9000
- Pci E
- 5.0
- M 2
- PCI-E
- Sata Slots
- 4
- Sata Speed
- 6 Gb/s
- Pci E Slots
- 2
- Tdp
- 50 W
- Nvme
- Yes
- Cpu Brand
- AMD
